The LB1938FA-BH from ON Semiconductor is a highly efficient, low-saturation, bidirectional motor driver IC designed to control small DC motors with superb precision and responsiveness. This compact driver is ideally suited for a wide range of applications, including but not limited to, portable devices, cameras, and small home appliances where space is at a premium and energy efficiency is desired.

Key Features:

• Operating Voltage: The LB1938FA-BH operates at a voltage range from 2.5V to 9.0V, making it versatile for use in various circuit designs and compatible with a range of power sources.
• Output Current: It is capable of delivering an output current of up to 400mA, which is sufficient for driving small DC motors in most compact applications.
• Low Saturation Voltage: The low saturation voltage feature minimizes power loss and helps maintain efficiency, especially critical in battery-operated devices where power conservation is essential.

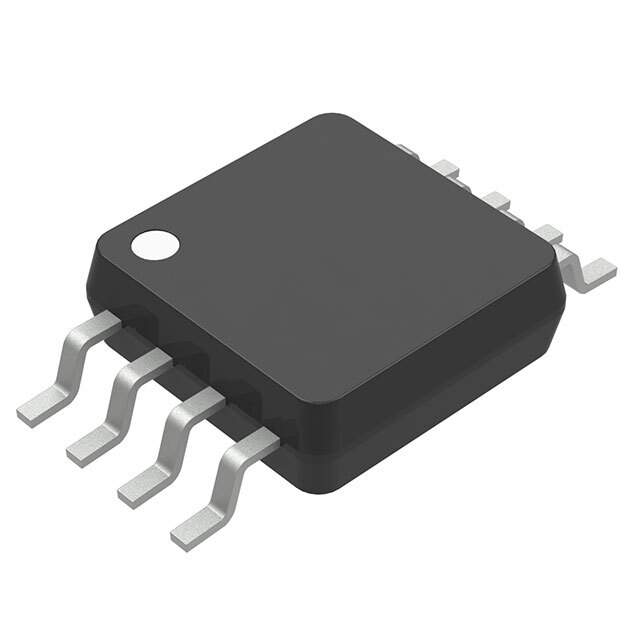

• Small Package: The IC comes in a small SOP8 package, which allows for a reduction in PCB space and is beneficial for designs where space is constrained.
• Simple Control: Motor rotation direction can be controlled easily by changing the logic level of the input pins, thus simplifying the control interface and reducing the need for additional components.
• Protection Features: It includes built-in thermal shutdown circuitry to protect the IC from overheating, ensuring long-term reliability and safety in operation.

Applications:

The LB1938FA-BH is suitable for a variety of applications where efficient motor control is required. It is particularly useful in portable electronic devices, such as handheld gaming devices, electronic toys, and personal care products. Additionally, its efficient power management capabilities make it an excellent choice for battery-powered applications.

Summary:

In summary, the LB1938FA-BH motor driver IC from ON Semiconductor combines efficiency, versatility, and compact design, making it an excellent choice for designers looking to incorporate reliable motor control in their next project. With its simple control mechanism, low power consumption, and robust protection features, this IC stands as a top contender in the field of small motor drivers.
