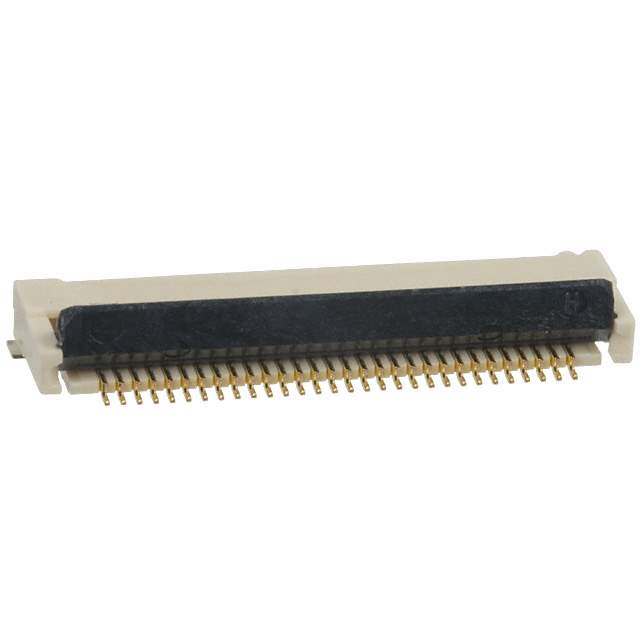

XF2M-3015-1A Real Image XF2M-3015-1A label picture
XF2M-3015-1A Real Image XF2M-3015-1A label picture
Same model may have multiple batches, images only for reference.

XF2M-3015-1A

Part No XF2M-3015-1A
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn FPC Connector SKT 30 POS 0.5mm Solder RA SMD T/R / CONN FPC 30POS 0.50MM R/A
Datasheet
XF2M-3015-1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel - TR
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 30
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.083" (2.10mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating 50V
Temperature Range - Operating -30°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Contact Finish Thickness 5.9μin (0.15μm)
Housing Color Natural
Actuator Color Black
Mating Cycles 20
Win Source Part Number 1119399-XF2M-3015-1A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name XF2M
Introduction Date March 28, 2003
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian XF2M-3015-1A CAD Model

Description

The Omron Electronics XF2M-3015-1A is a connector component that is part of the XF2M family.

  • Feature: Rotary Lock and Backlock
  • Contact Type: FFC and FPC
  • Quantity per Package: 20
  • Housing Color: Natural
