NXP PMEG6010CEH,115 Schottky Diode Overview

The NXP PMEG6010CEH,115 is a high-efficiency, surface-mounted Schottky barrier diode designed for applications requiring a balance between efficiency and power handling. This diode is part of NXP's extensive line of semiconductor products, known for their reliability and performance in various electronic applications.

Key Features

• Low Forward Voltage: The PMEG6010CEH,115 features a low forward voltage drop, which enhances its efficiency, especially in low-voltage applications. This characteristic minimizes power loss and improves overall system efficiency.
• High Current Capability: With a forward current rating of 1 A, this diode can handle significant current, making it suitable for high-power applications or circuits that experience occasional current surges.
• Low Reverse Leakage Current: The low reverse leakage current of this diode ensures that power consumption is minimized when the diode is in the reverse-biased state, contributing to energy savings in the overall system.

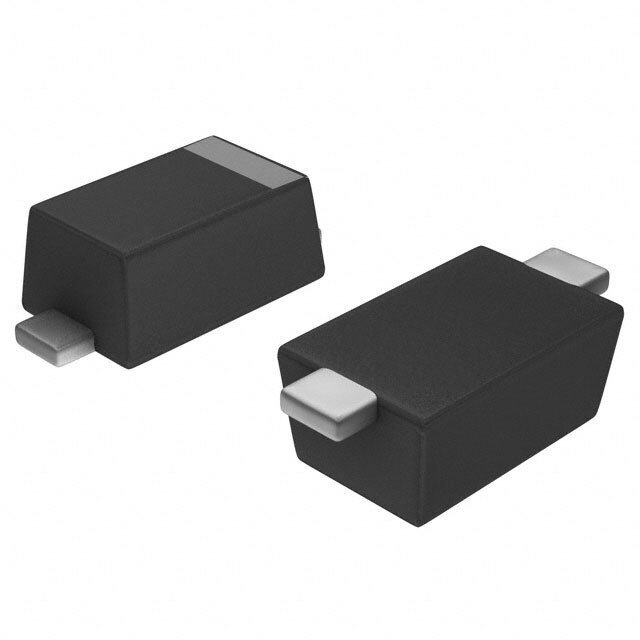

• Surface-Mount Package: The PMEG6010CEH,115 comes in an SOD-123F package, which is ideal for automated assembly processes and helps reduce the overall size of the end product.
• High Junction Temperature: With a maximum junction temperature of 150°C, this diode can operate reliably in environments with high temperature, providing a robust solution for demanding applications.

Applications

The NXP PMEG6010CEH,115 is versatile and can be used in a variety of electronic circuits. Common applications include:

• Switching power supplies
• DC-DC converters
• Freewheeling diodes in converters and motor control circuits
• Power management devices
• Reverse battery protection
• Low voltage, high-frequency inverters

Product Specifications

In summary, the NXP PMEG6010CEH,115 Schottky diode is a reliable and efficient choice for designers looking to optimize their power-sensitive applications without sacrificing performance.
