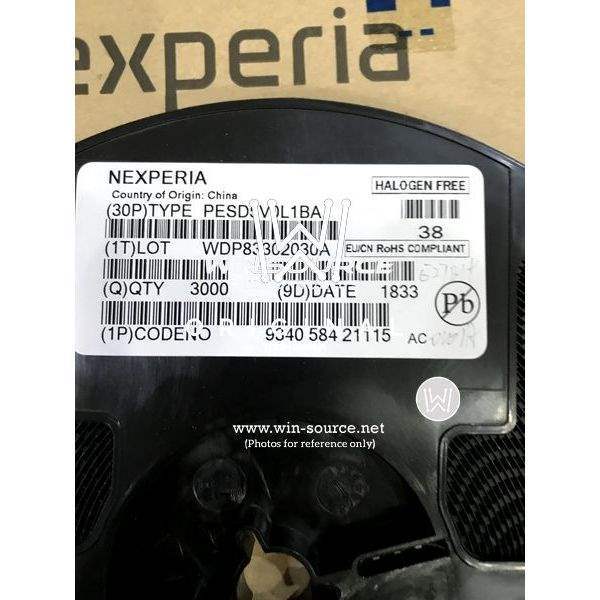

Overview of NXP PESD5V0L1BA,115

The NXP PESD5V0L1BA,115 is a state-of-the-art ESD protection device designed to safeguard sensitive electronic circuits from electrostatic discharge (ESD) events. This compact and efficient component is part of NXP's portfolio of ESD protection devices, which are widely recognized for their high-quality and reliability. It is specifically engineered to protect one signal line with a low clamping voltage.

Key Features

• Low Clamping Voltage: The device offers a very low clamping voltage, which is essential for protecting modern electronic components that are sensitive to high voltage levels during ESD events.
• Single-Line Protection: It is designed to protect one data or signal line, providing targeted protection where it is most needed.
• Low Capacitance: The PESD5V0L1BA,115 features a low loading capacitance, making it suitable for high-speed data lines without significantly affecting signal integrity.
• High ESD Protection Level: This component can withstand ESD discharges up to 15 kV (air and contact discharge) as defined in the IEC 61000-4-2 standard, ensuring robust protection for your equipment.
• Small Package Size: The device comes in a small SOD323 (SC-76) package, making it ideal for space-constrained applications.
• Lead-Free and RoHS Compliant: Complying with environmental regulations, the PESD5V0L1BA,115 is lead-free and RoHS compliant.

Applications

The versatility of the NXP PESD5V0L1BA,115 allows it to be used in a wide range of applications. It is particularly well-suited for protecting:

• Mobile phones
• Computers and peripherals
• Portable electronics
• Digital cameras
• MP3 players
• Other sensitive electronics with data lines requiring ESD protection

With its combination of low clamping voltage, high ESD protection level, and small form factor, the NXP PESD5V0L1BA,115 is an excellent choice for designers looking to enhance the durability and longevity of their electronic products against ESD events.

Quality and Support

NXP is known for its commitment to quality and provides extensive technical support for its products. Designers can rely on the PESD5V0L1BA,115 for consistent performance and protection in their applications.
