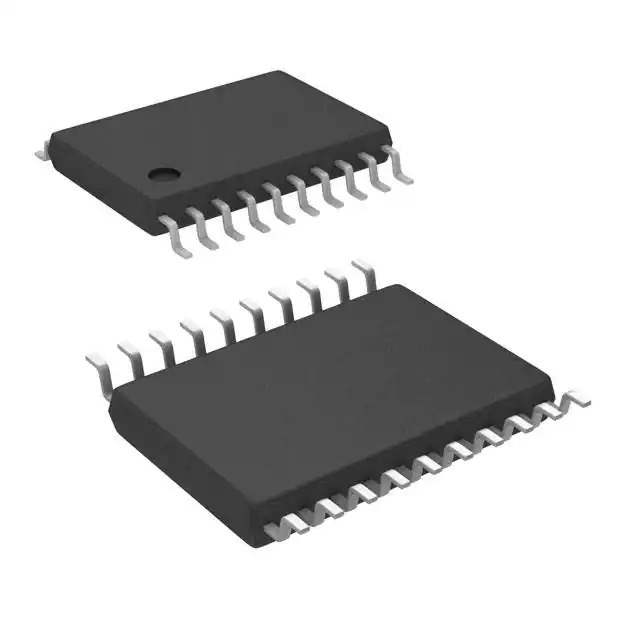

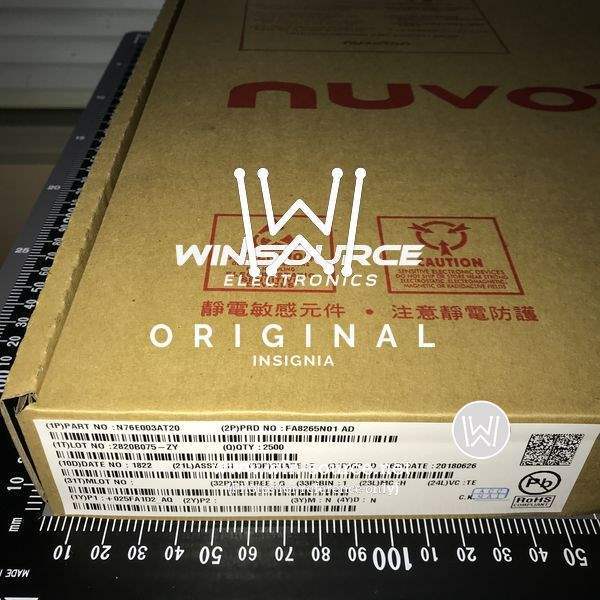

N76E003AT20 Nuvoton Technology Corporation of America N76E003AT20 Real Image N76E003AT20 label picture 2 N76E003AT20 real image14486
N76E003AT20 Nuvoton Technology Corporation of America N76E003AT20 Real Image N76E003AT20 label picture 2 N76E003AT20 real image14486
Same model may have multiple batches, images only for reference.

N76E003AT20

Part No N76E003AT20
Manufacturer Nuvoton Technology Corporation of America
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 18KB FLASH 20TSSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Nuvoton Technology Corporation of America
Series N76
Package Tube
Product Status Active
Programmable Not Verified
Core Processor 8051
Core Size 8-Bit
Speed 16MHz
Connectivity I2C, SPI, UART/USART
Peripherals Brown-out Detect/Reset, I2S, POR, PWM, WDT
Number of I/O 18
Program Memory Size 18KB (18K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 2.4V ~ 5.5V
Data Converters A/D 8x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting Type Surface Mount
Package / Case 20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 20-TSSOP
Base Product Number N76E003
Standard Package 74 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 747871-N76E003AT20
Ultra Librarian 3D Model Ultra Librarian N76E003AT20 CAD Model

Description

The 747871-N76E003AT20 is an embedded microcontroller, part of the N76 series manufactured by Nuvoton Technology Corporation of America.

  • Processor: 8051 core
  • Speed: 16MHz
  • Package: surface mount
  • I/O Pins: 18
  • Program Memory Size: 18KB
  • EEPROM Size: 4K x 8
  • Operating Voltage: 2.4V to 5.5V
  • Connectivity: I2C, SPI, and UART/USART
  • Applications: industrial control, home automation, and consumer electronics
  • Status: active product
