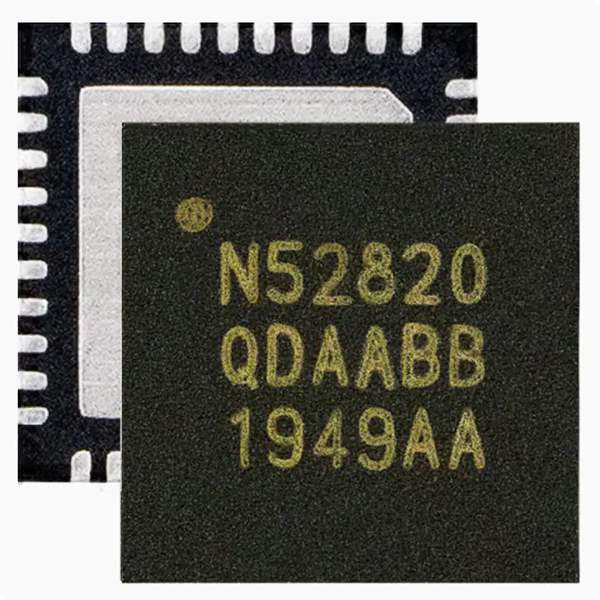

NRF52820-QDAA-R7 Nordic Semiconductors
Same model may have multiple batches, images only for reference.

NRF52820-QDAA-R7

Part No NRF52820-QDAA-R7
Manufacturer Nordic Semiconductors
Catalog RF Transceiver ICs
Description BLUETOOTH 5.3 SOC WITH BUILT-IN / IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.3, Thread, Zigbee® 2.4GHz 40-VFQFN Exposed Pad
Datasheet
NRF52820-QDAA-R7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver ICs
Mfr Nordic Semiconductor ASA
Series nRF52
Package Tape & Reel
Product Status Active
Type TxRx + MCU
RF Family/Standard 802.15.4, Bluetooth
Protocol Bluetooth v5.3, Thread, Zigbee®
Modulation -
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 8dBm
Sensitivity -95dBm
Memory Size 256kB Flash, 32kB RAM
Serial Interfaces SPI, UART, USB
GPIO 18
Voltage - Supply 1.7V ~ 5.5V
Current - Receiving 3.4mA ~ 10.9mA
Current - Transmitting 2.3mA ~ 30mA
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount
Package / Case 40-VFQFN Exposed Pad
Supplier Device Package 40-QFN (5x5)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1356096-NRF52820-QDAA-R7
Ultra Librarian 3D Model Ultra Librarian NRF52820-QDAA-R7 CAD Model

Description

The 1356096-NRF52820-QDAA-R7 is an RF transceiver IC with an integrated MCU manufactured by Nordic Semiconductor ASA.

  • Series: nRF52
  • Packaging: Tape & Reel
  • Product Status: Active
  • Frequency: 2.4GHz
  • Protocols: Bluetooth v5.3, Thread, and Zigbee
  • Voltage Supply: 1.7V to 5.5V
  • Flash Memory: 256kB
  • RAM: 32kB
  • Mounting Type: Surface Mount
  • Package: 40-VFQFN exposed pad
