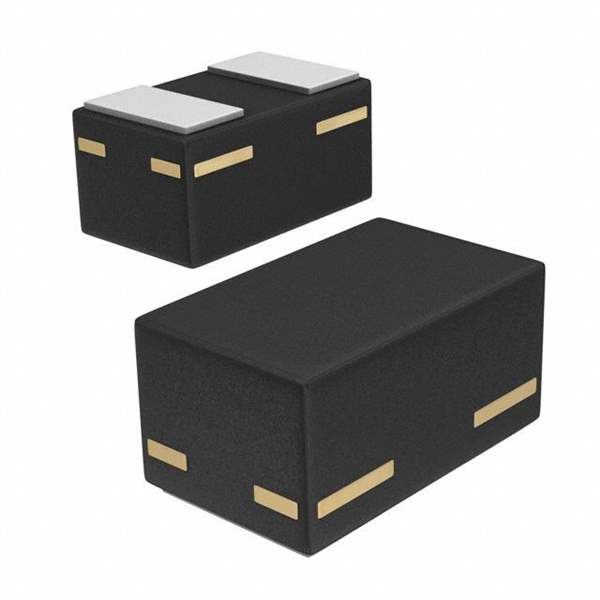

RB751CS40,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

RB751CS40,315

Part No RB751CS40,315
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 120MA SOD882
Datasheet
RB751CS40,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 120mA (DC)
Voltage - Forward (Vf) (Max) @ If 370mV @ 1mA
Current - Reverse Leakage @ Vr 500nA @ 30V
Capacitance @ Vr, F 2pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package DFN1006-2
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1091454-RB751CS40,315
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Portable Devices, Computers & Computer Peripherals, Lighting, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian RB751CS40,315 CAD Model

Description

The Nexperia USA Inc. RB751CS40,315 Schottky diode is a fast-recovery diode.

  • Maximum Reverse Voltage: 40V
  • Average Rectified Current: 120mA (DC)
  • Forward Voltage: 370mV @ 1mA
  • Reverse Leakage Current: 500nA @ 30V
  • Capacitance: 2pF @ 1V and 1MHz
  • Packaging: Reel
  • Case/Package: DFN1006-2
  • Operating Temperature: 150°C (Max)
  • Applications: Portable devices, computers and computer peripherals, lighting, and consumer electronics.
