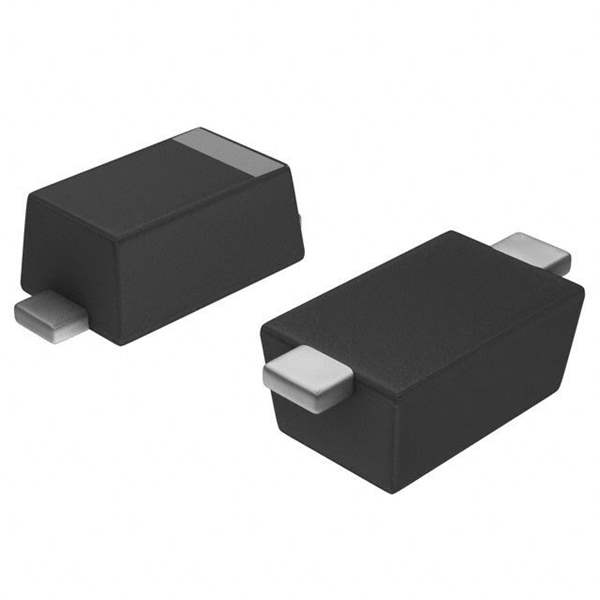

PMEG3010ER,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PMEG3010ER,115

Part No PMEG3010ER,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 1A SOD123W
Datasheet
PMEG3010ER,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 360mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1.5mA @ 30V
Capacitance @ Vr, F 170pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package CFP3
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1089590-PMEG3010ER,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PMEG3010ER,115 CAD Model

Description

The Nexperia USA Inc. PMEG3010ER,115 is a surface mount Schottky diode designed for use in discrete semiconductor products.

  • Reverse Voltage (Vr): 30V
  • Average Rectified Current (Io): 1A
  • Forward Voltage (Vf) (Max) @ If: 360mV @ 1A
  • Reverse Leakage Current @ Vr: 1.5mA @ 30V
  • Package: CFP3
  • Mounting Type: Surface Mount
