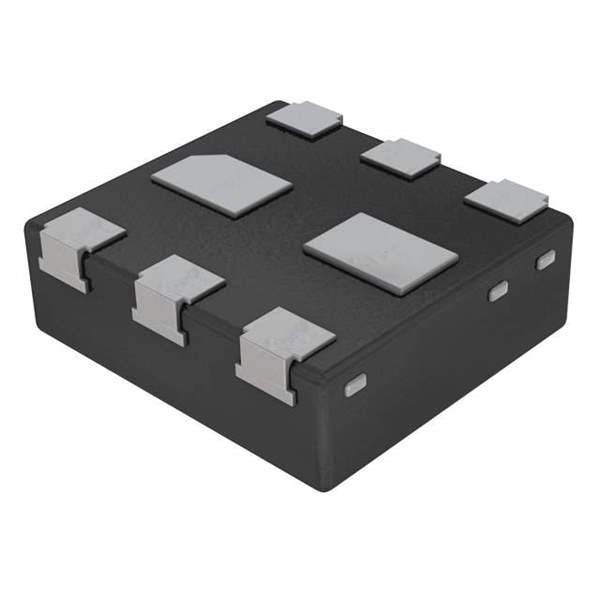

BC847QAPNZ Real Image
Same model may have multiple batches, images only for reference.

BC847QAPNZ

Part No BC847QAPNZ
Manufacturer Nexperia USA Inc.
Catalog RF Transistors (BJT)
Description TRANS NPN/PNP 45V 0.1A 6DFN / Bipolar (BJT) Transistor Array NPN, PNP 45V 100mA 100MHz 350mW Surface Mount DFN1010B-6
Datasheet
BC847QAPNZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Arrays
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Transistor Type NPN, PNP
Current - Collector (Ic) (Max) 100mA
Voltage - Collector Emitter Breakdown (Max) 45V
Vce Saturation (Max) @ Ib, Ic 100mV @ 500µA, 10mA
Current - Collector Cutoff (Max) 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 200 @ 2mA, 5V
Power - Max 350mW
Frequency - Transition 100MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Package / Case 6-XFDFN Exposed Pad
Supplier Device Package DFN1010B-6
Base Product Number BC847
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0075
Other Names 934067159147,BC847QAPN,568-10931-6,1727-1460-2,1727-1460-1,568-10931-6-ND,568-10931-2-ND,568-10931-1-ND,568-10931-2,568-10931-1,1727-1460-6
Standard Package 5,000
Win Source Part Number 1048413-BC847QAPNZ
Ultra Librarian 3D Model Ultra Librarian BC847QAPNZ CAD Model

Description

The BC847QAPNZ is an NPN, PNP bipolar transistor array from Nexperia USA Inc. that is part of the automotive AEC-Q101 series.

  • Package: Tape and reel
  • Standard Package: 5,000
  • Maximum Power: 350mW
  • Maximum Collector Current: 100mA
  • Voltage at Collector-Emitter Breakdown: 45V
  • DC Current Gain: 200 @ 2mA and 5V
  • Current Cutoff: 15nA
  • Transition Frequency: 100MHz
  • Mounting: SMD (SMT)
  • Package/Case: 6-XFDFN Exposed Pad
  • Supplier Device Package: DFN1010B-6
  • Operating Temperature Range: 150 degrees Celsius (TJ)
  • Cross-Reference: BC847BW-7-F, BC847PN-7-F, BC857BT-7-F, MMBTA20LT1G, and MMBTA20LT1
