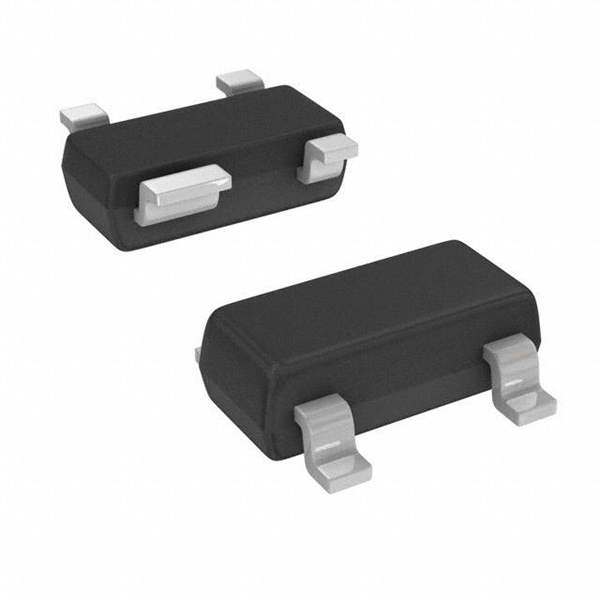

BAV23,215 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAV23,215

Part No BAV23,215
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 200V 225MA SOT143
Datasheet
BAV23,215 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Configuration 2 Independent
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) (per Diode) 225mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 100nA @ 200V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Case / Package SOT-143B
Win Source Part Number 1022221-BAV23,215
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BAV23,215 CAD Model

Description

The Nexperia USA Inc. BAV23,215 is a standard diode that is highly efficient and reliable.

  • Maximum DC Reverse Voltage: 200V
  • Maximum Forward Voltage: 1V @ 100mA
  • Reverse Recovery Time: 50ns
  • Reverse Leakage Current: 100nA @ 200V
  • Configuration: 2 independent parts
  • Average Rectified Current: 225mA (DC)
  • Application: Discrete semiconductor products
  • Package: SOT-143B
  • Supply and Demand: Balanced
