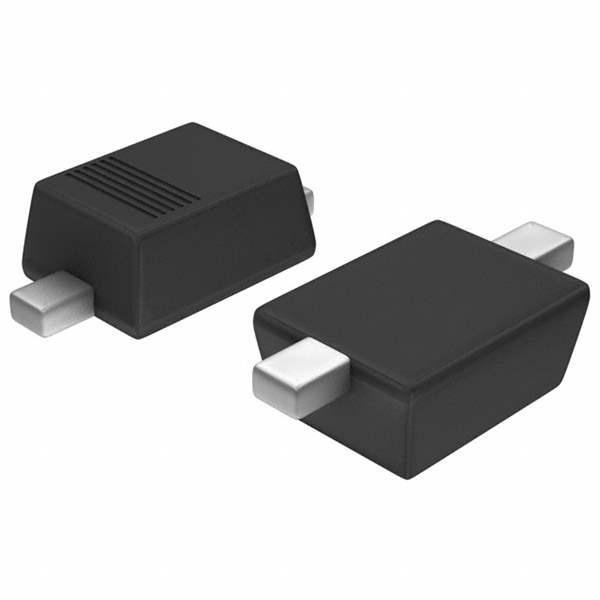

BAS16J,135 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAS16J,135

Part No BAS16J,135
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Datasheet
BAS16J,135 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101, BAS16
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 250mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 500 nA @ 80 V
Capacitance @ Vr, F 1.5pF @ 0V, 1MHz
Mounting SMD (SMT)
Package / Case SC-90, SOD-323F
Supplier Device Package SOD-323F
Operating Temperature - Junction 150°C (Max)
Base Product Number BAS16
Other Names 2156-BAS16J,135-NEX,1727-4797-1,1727-4797-2,568-5996-6,1727-4797-6,568-5996-2,568-5996-6,NEXNEXBAS16J,135,568-5996-2,568-5996-1,568-5996-1,934060935135,BAS16J,135
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1282249-BAS16J,135
Ultra Librarian 3D Model Ultra Librarian BAS16J,135 CAD Model

Description

The BAS16J is a rectifier type diode designed for discrete semiconductor products.

  • DC Reverse Voltage (Vr) (Max): 100V
  • Average Rectified Current (Io): 250mA (DC)
  • Forward Voltage (Vf) (Max) @ If: 1.25V @ 150mA
  • Reverse Recovery Time (trr): 4ns
  • Current Reverse Leakage @ Vr: 500nA @ 80V
  • Capacitance @ Vr, F: 1.5pF @ 0V, 1MHz
  • Operating Temperature Range: 150°C (Max)
  • Package: SC-90, SOD-323F
  • ECCN: EAR99
  • REACH: unaffected
