Overview

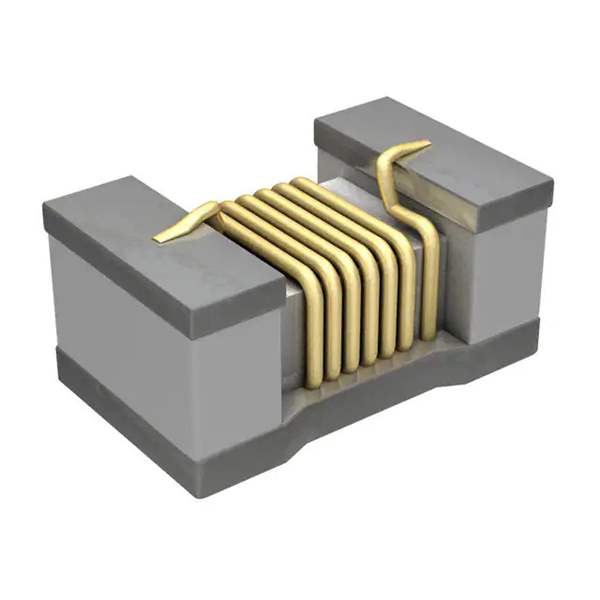

The LQW15CNR18J1ZD from Murata Electronics North America is a compact fixed inductor designed for high‑density surface-mount applications. Belonging to Murata’s LQW15 series, it is housed in an industry-standard 0402 (1005 metric) chip package, making it well-suited for space-constrained circuits such as RF front-ends, filters, impedance matching networks, and general high-frequency signal conditioning. As a fixed inductor, it provides a stable inductance value with low loss over its intended operating range, supporting reliable performance in modern communication, consumer, and industrial equipment.

Applications

• RF matching networks and filters in wireless transceivers and communication modules
• Impedance matching and tuning in Bluetooth, Wi‑Fi, and cellular RF front-ends
• High-frequency signal conditioning in compact consumer electronics (smartphones, wearables, tablets)
• Bias chokes and decoupling elements in mixed-signal and high-speed digital circuits
• Compact DC bias or resonant networks in IoT sensor nodes and modules
• Precision LC networks in test, measurement, and low-power industrial control equipment

Alternatives & Replacement

Depending on availability, lifecycle status, or specific design constraints (such as inductance value, current rating, Q factor, or size), engineers may consider alternative inductors as potential replacements for the LQW15CNR18J1ZD. Any substitute must be carefully evaluated against the original in terms of electrical characteristics and mechanical footprint.

Recommended alternatives:

• SDCL1005C1N3STDF – Sunlord (Redesign Required; verify electrical and package compatibility)
• WPN4012H1R0MTY01 – Sunlord (Redesign Required; different size and likely different performance class)
• SDCL1005C2N4STDF – Sunlord (Redesign Required; check inductance, current, and footprint)
• SDCL1608C8N2JTDF – Sunlord (Redesign Required; larger package, board changes expected)
• SDCL0603Q10NJT02B03 – Sunlord (Redesign Required; size and specs differ, detailed review needed)

Engineering note: Before committing to any replacement, always compare the full datasheets, including inductance tolerance, DC resistance, self-resonant frequency, current rating, Q factor, temperature characteristics, and package dimensions/land pattern. Confirm that the alternative meets your electrical margins and that pad layout, height, and assembly conditions are compatible with your existing PCB and manufacturing process.
