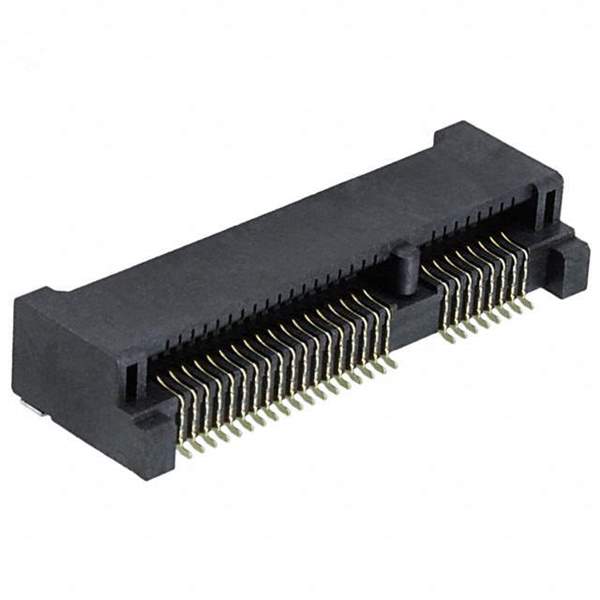

67910-5700 Real Image
Same model may have multiple batches, images only for reference.

67910-5700

Part No 67910-5700
Manufacturer Molex, LLC
Catalog Card Edge Connectors - Edgeboard Connectors
Description Card Edge Conn, Dual Side, 52 Pos, Smt Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Card Thickness 990.6 µm
Color Black
Contact Material Bronze, Gold, Nickel
Contact Plating Gold
Country of Origin TW
Current Rating 1.1 A
Gender Female
Height 6 mm
Housing Color Black
Housing Material Polymer
Insulation Material Polymer
Maximum Operating Temperature 80 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 52
Number of Contacts 52
Number of Positions 52
Number of Rows 2
Orientation Right Angle
Pitch 787.4 µm
Plating Tin
RoHS Compliant
Termination Solder
Win Source Part Number 970616-67910-5700
Categories Card Edge Connectors - Edgeboard Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 67910-5700 CAD Model

Description

The Molex 970616-67910-5700 is a female card edge connector with 52 positions and 2 rows.

  • Pitch: 787.4 µm
  • Current Rating: 1.1 A
  • Housing: Polymer housing
  • Contact Material: Bronze, gold, nickel
  • RoHS compliant: Yes
  • Operating Temperature: -40 to 80 °C
