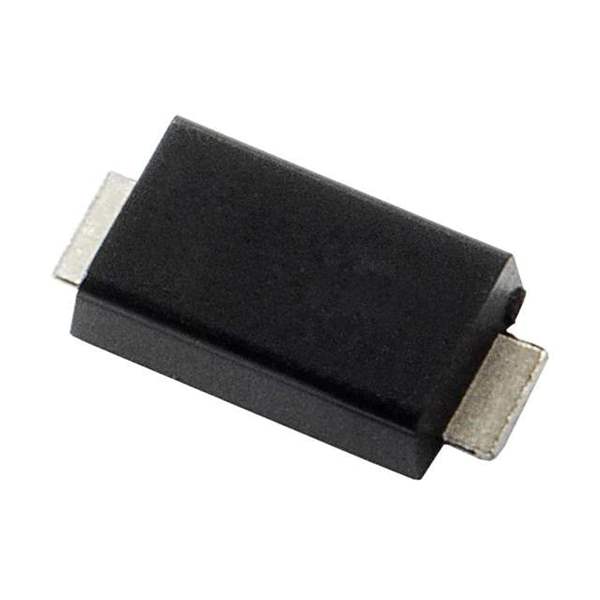

TPSMA6L33A Real Image
Same model may have multiple batches, images only for reference.

TPSMA6L33A

Part No TPSMA6L33A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 33VWM 53.3VC DO221AC
Datasheet
TPSMA6L33A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 33V
Voltage - Breakdown (Min) 36.7V
Voltage - Clamping (Max) @ Ipp 53.3V
Power - Peak Pulse 600W
Power Line Protection No
Applications Automotive
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Series Automotive, AEC-Q101, TPSMA6L
California Prop 65 Warning Information
Standard Package 3,000 pcs
Supplier Device Package DO-221AC
Current - Peak Pulse (10/1000µs) 11.3A
Product Status Active
Mfr Littelfuse Inc.
Win Source Part Number 850216-TPSMA6L33A
Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Ultra Librarian 3D Model Ultra Librarian TPSMA6L33A CAD Model

Description

The 850216-TPSMA6L33A is a TVS diode from the TPSMA6L series. It is manufactured by Littelfuse Inc.

  • Application: Automotive
  • Mounting Type: Surface Mount
  • Package: DO-221AC
  • Packaging: Tape and Reel
  • Reverse Standoff Voltage: 33V
  • Breakdown Voltage: 36.7V
  • Clamping Voltage: 53.3V @ a peak pulse current of 11.3A
  • Power Rating: 600W
  • Operating Temperature: -50°C to 150°C
  • Product Status: Active
