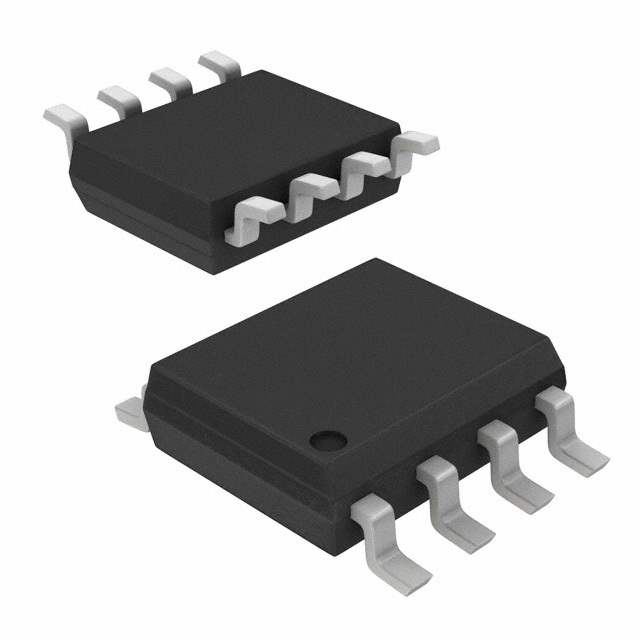

ISL83485IBZ-T Real Image ISL83485IBZ-T real image472 ISL83485IBZ-T real image473 ISL83485IBZ-T real image474 ISL83485IBZ-T real image475 ISL83485IBZ-T real image476 ISL83485IBZ-T Real Image1 ISL83485IBZ-T Real Image2 ISL83485IBZ-T Real Image3 ISL83485IBZ-T Real Image4 ISL83485IBZ-T Real Image5 ISL83485IBZ-T Real Image6 ISL83485IBZ-T Real Image7 ISL83485IBZ-T Real Image8
ISL83485IBZ-T Real Image ISL83485IBZ-T real image472 ISL83485IBZ-T real image473 ISL83485IBZ-T real image474 ISL83485IBZ-T real image475 ISL83485IBZ-T real image476 ISL83485IBZ-T Real Image1 ISL83485IBZ-T Real Image2 ISL83485IBZ-T Real Image3 ISL83485IBZ-T Real Image4 ISL83485IBZ-T Real Image5 ISL83485IBZ-T Real Image6 ISL83485IBZ-T Real Image7 ISL83485IBZ-T Real Image8
Same model may have multiple batches, images only for reference.

ISL83485IBZ-T

Part No ISL83485IBZ-T
Manufacturer Intersil
Catalog Interface - Drivers, Receivers, Transceivers
Description IC TXRX RS485/422 3.3V LP 8-S
Datasheet
ISL83485IBZ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Reel - TR
Status Active
Type Transceiver
Protocol RS422, RS485
Number of Drivers/Receivers 1/1
Duplex Half
Receiver Hysteresis 50mV
Data Rate 10Mbps
Supply Voltage - Operating 3 V to 3.6 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SOIC
Win Source Part Number 018059-ISL83485IBZ-T
Family Name ISL83485
Introduction Date March 27, 2003
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian ISL83485IBZ-T CAD Model

Description

The Intersil ISL83485IBZ-T is a high popularity electronic component that is widely used in various electronic circuits.

  • Protocols: RS422 and RS485
  • Duplex: Half duplex
  • Data Rate: 10Mbps
  • Receiver Hysteresis: 50mV
  • Temperature Range: -40°C to 85°C
  • Package: 8-SOIC package
  • Operating Voltage: 3V to 3.6V
  • Compliance: Halogen-free standards
  • EOL Date: 2023
