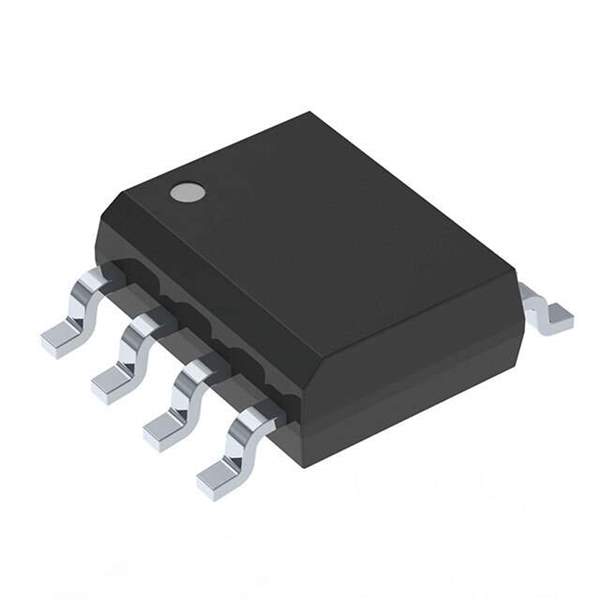

IRF7324PBF Real Image
Same model may have multiple batches, images only for reference.

IRF7324PBF

Part No IRF7324PBF
Manufacturer Infineon Technologies
Catalog FETs - Arrays
Description HEXFET Power MOSFET(-20V, 0.018ohm) | MOSFET 2P-CH 20V 9A 8-SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tube
Transistor Polarity 2 P-Channel (Dual)
FET Feature Logic Level Gate
Vds - Drain-Source Breakdown Voltage 20V
Id - Continuous Drain Current 9A
Rds On (Maximum) at Id, Vgs 18mOhm at 9A, 4.5V
Gate Source Voltage(th) (Maximum) at Id 1V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 63nC at 5V
Input Capacitance (Ciss) (Maximum) at Vds 2940pF at 15V
Maximum Power 2W
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package 8-SOIC
Supplier Device Package 8-SO
Family Part Number IRF7324PBF
Manufacturer Pack Quantity 3,800
MSL Level 1 (Unlimited)
Win Source Part Number 1187216-IRF7324PBF
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IRF7324PBF CAD Model

Description

The Infineon Technologies IRF7324PBF is a dual P-channel MOSFET transistor designed for use in discrete semiconductor products.

  • Channel Type: P-Channel
  • Configuration: Dual
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 9A
  • Power: 2W
  • Input Capacitance: 2940pF @ 15V
  • Gate Charge: 63nC @ 5V
  • Gate-Source Voltage: 1V @ 250μA
  • Mounting Style: Surface Mount
  • Package: 8-SO
  • Popularity: Medium
  • Supply and Demand Status: Limited
