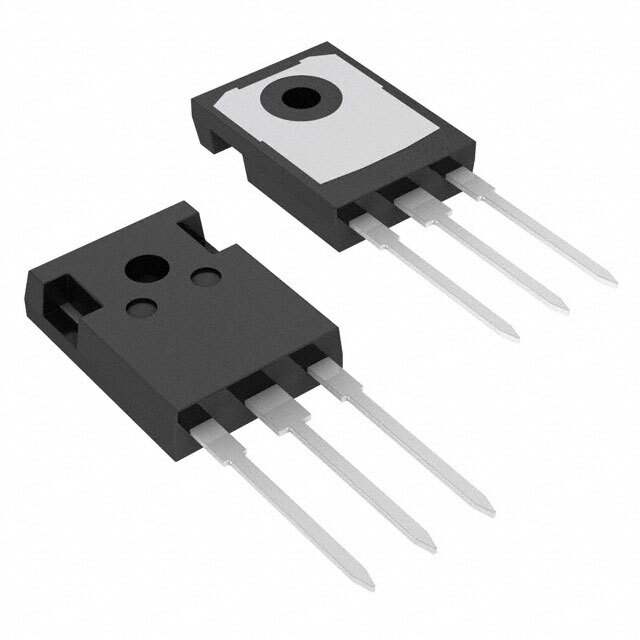

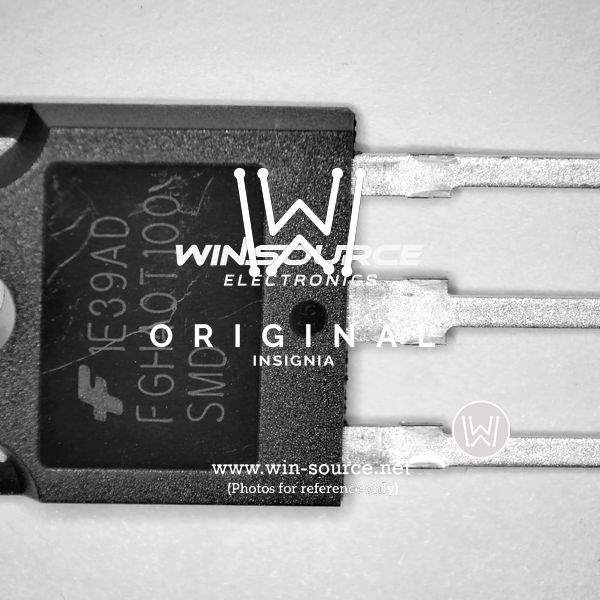

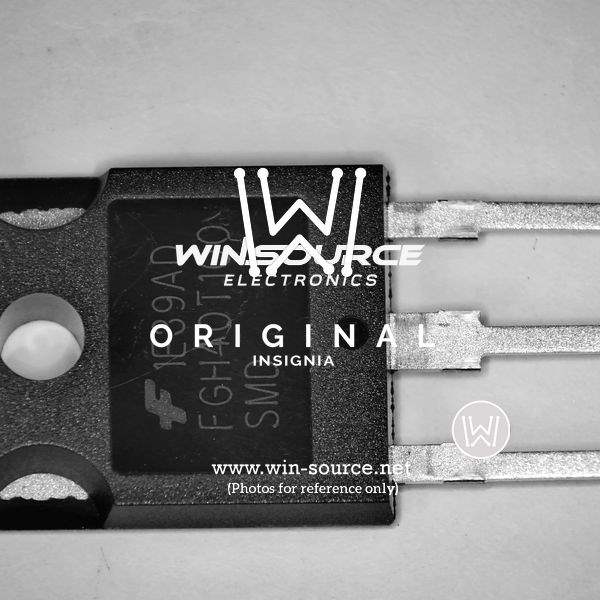

FGH40T100SMD Real Image FGH40T100SMD Real Image1 FGH40T100SMD Real Image2 FGH40T100SMD Real Image3 FGH40T100SMD Real Image4
FGH40T100SMD Real Image FGH40T100SMD Real Image1 FGH40T100SMD Real Image2 FGH40T100SMD Real Image3 FGH40T100SMD Real Image4
Same model may have multiple batches, images only for reference.

FGH40T100SMD

Part No FGH40T100SMD
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description IGBT 1000V 80A 333W TO247-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
IGBT Type Trench Field Stop
VCEO Maximum Collector-Emitter Breakdown Voltage 1000V
Maximum Current Collector 80A
Pulsed Collector Current 120A
Collector-emitter saturation voltage(Max) 2.3V @ 15V, 40A
Maximum Power Dissipation 333W
Total Switching Energy(Ets) 2.35mJ (on), 1.15mJ (off)
Input Type Standard
Gate Charge 265nC
Turn-on and Turn-off delay time 29ns/285ns
Testing Conditions 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) 78ns
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package TO-247-3
Win Source Part Number 001173-FGH40T100SMD
Popularity Medium
Supply and Demand Status Balance
Quantity per package 450
Ultra Librarian 3D Model Ultra Librarian FGH40T100SMD CAD Model

Description

The FGH40T100SMD from Fairchild/ON Semiconductor is a high-performance IGBT designed for various electronic applications.

  • Technology: Trench Field Stop
  • Current Collector (Max): 80A
  • Collector-Emitter Breakdown Voltage (Max): 1000V
  • Power Dissipation (Max): 333W
  • Mounting: Through-Hole
  • Package: TO-247-3
  • Temperature Range: -55°C to 175°C (TJ)
  • Pulsed Collector Current: 120A
