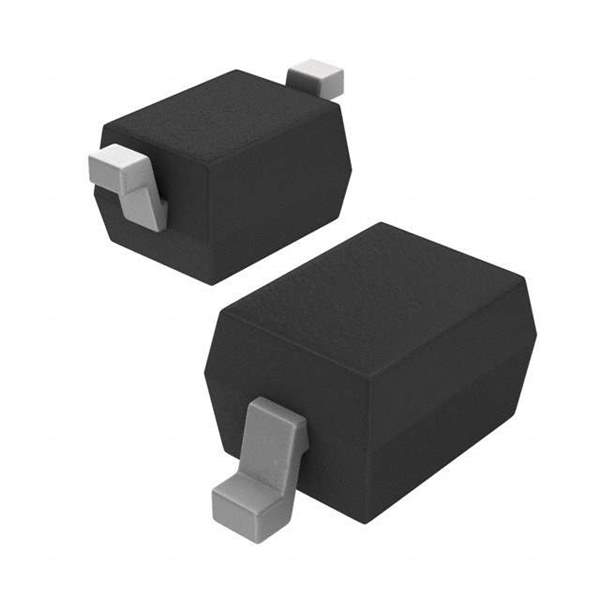

The SD05-7 from Diodes Incorporated is a robust and versatile transient voltage suppressor (TVS) diode, specifically designed to protect sensitive electronic equipment from voltage transients induced by system inductive load switching and lightning. This component is a great solution for safeguarding your circuits in a compact SOD-323 package, offering a combination of low leakage current and bidirectional clamping functionality.

Key Features

• Transient Protection: The SD05-7 is capable of handling pulses as per the IEC 61000-4-2 (ESD) standard, IEC 61000-4-4 (EFT), and IEC 61000-4-5 (Surge) standards, providing a comprehensive shield against various types of electrical transients.
• Low Capacitance: With a low loading capacitance, this device is suitable for protecting high-speed signal lines without significant signal degradation, making it ideal for applications such as USB and HDMI interfaces.
• Power Dissipation: It offers a peak pulse power dissipation of 200W (8/20μs waveform), ensuring reliable protection during transient voltage spikes.
• Operating Temperature Range: The SD05-7 operates efficiently across a wide temperature range from −55°C to +150°C, accommodating various environmental conditions.

Applications

• Portable Electronics
• Power Supplies
• Notebooks and Desktop Computers
• Industrial Controls
• Automotive Systems

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the SD05-7 is no exception. This TVS diode is manufactured in compliance with the highest industry standards, ensuring both reliability and performance. With its bidirectional design, it provides symmetrical ESD protection for data lines when positive and negative transient voltages occur.

Environmental Compliance

The SD05-7 is RoHS compliant, meaning it meets the European Union's restrictions on the use of certain hazardous substances in electrical and electronic equipment. This commitment to environmental safety ensures that the SD05-7 can be used in a wide range of global applications while adhering to regulatory requirements.
