The SBR1U200P1-7 is a state-of-the-art rectifier component designed and manufactured by Diodes Incorporated, a leading global provider of high-quality semiconductor products. This Super Barrier Rectifier (SBR) is engineered to deliver high performance and reliability for a variety of applications, making it an ideal choice for designers looking to enhance the efficiency of their electronic circuits.

Key Features

• Low Forward Voltage Drop: The SBR1U200P1-7 is designed to have a very low forward voltage drop, which significantly reduces power losses and improves efficiency in operation.
• High Surge Capability: With its robust surge capability, this component can withstand high surge currents, providing excellent reliability and performance stability under extreme conditions.

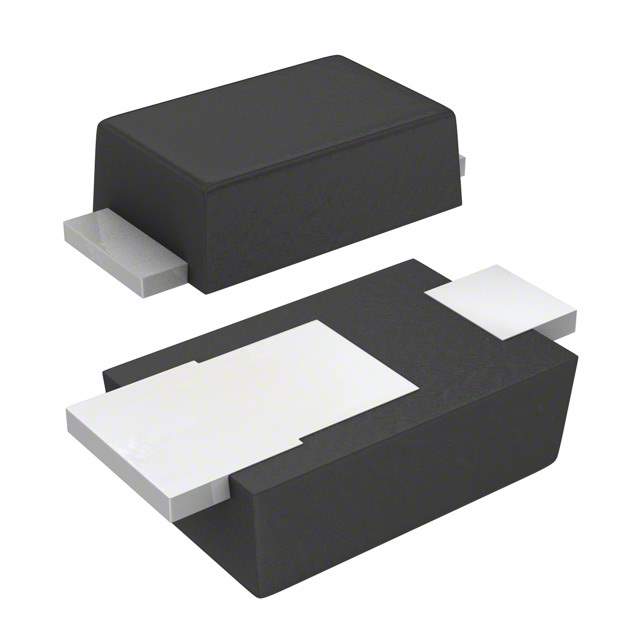

• Power Pack 5 (PP5) Package: The device comes in a small and compact Power Pack 5 (PP5) package, which is ideal for space-constrained applications.
• RoHS Compliant: The SBR1U200P1-7 meets the requirements of the RoHS directive, making it suitable for use in environmentally sensitive applications.
• High-Temperature Operation: Capable of operating at high temperatures, this SBR ensures consistent performance even in thermally challenging environments.

Applications

The versatility of the SBR1U200P1-7 makes it suitable for a wide range of applications, including:

• DC/DC converters
• Power supplies
• LED lighting
• Automotive applications
• Freewheeling diodes
• Reverse battery protection

Technical Specifications

The SBR1U200P1-7 boasts impressive technical specifications that ensure optimal performance:

• Maximum repetitive peak reverse voltage: 200V
• Average rectified forward current: 1A
• Non-repetitive peak forward surge current: 40A
• Operating junction temperature range: -55°C to +150°C
• Low profile package height: less than 1.1mm

Conclusion

Overall, the SBR1U200P1-7 from Diodes Incorporated represents a perfect blend of efficiency, reliability, and compactness. It is designed to meet the demanding requirements of modern electronic devices and is a testament to Diodes Incorporated's commitment to providing high-performance semiconductor solutions.
