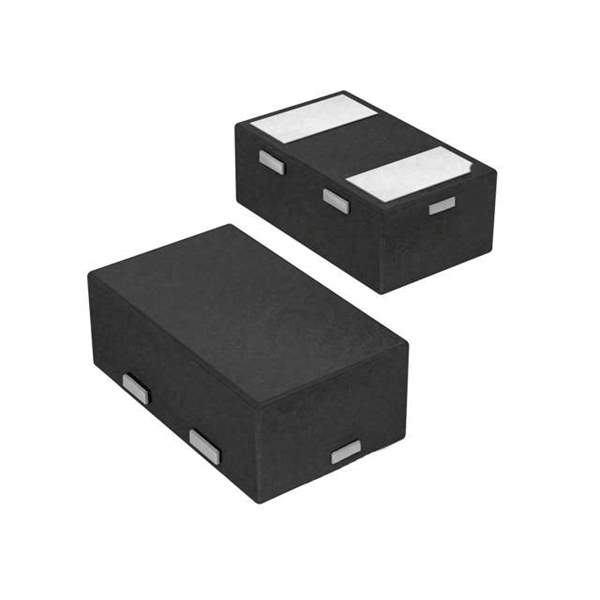

Product Overview: DESD3V3S1BL-7B from Diodes Incorporated

The DESD3V3S1BL-7B is a robust transient voltage suppression (TVS) diode, designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This TVS diode is engineered to protect sensitive electronic equipment from voltage transients induced by system-level electrostatic discharge (ESD) and other voltage spikes that can damage circuits. The DESD3V3S1BL-7B is an essential component for any design where electronic devices are at risk of exposure to ESD events, such as in consumer electronics, computer interfaces, and telecommunications systems.

Key Features

• ESD Protection: The DESD3V3S1BL-7B is capable of withstanding ESD strikes at ±30kV (air and contact discharge), according to the IEC 61000-4-2 standard, providing excellent protection for sensitive components.
• Low Clamping Voltage: This device offers a low clamping voltage, ensuring that any transient voltage spikes are quickly suppressed to safe levels, minimizing the risk of damage to the protected component.
• Small Package Size: It comes in a small SOD-323 package, making it suitable for use in space-constrained applications without sacrificing performance.
• Fast Response Time: The DESD3V3S1BL-7B reacts almost instantaneously to transient voltages, delivering prompt protection when it is most needed.
• Low Leakage Current: With its low leakage current, this TVS diode ensures minimal impact on the normal operation of the circuit, preserving energy and maintaining efficiency.

Applications

• Consumer Electronics: Protects smartphones, tablets, and other portable devices from ESD damage.
• Computer Interfaces: Ideal for USB, HDMI, and other data lines requiring ESD protection.
• Telecommunications: Shields network devices and communication lines from voltage transients.

The DESD3V3S1BL-7B from Diodes Incorporated is a high-quality, reliable solution for protecting electronic circuits from the damaging effects of ESD. Its combination of low clamping voltage, fast response time, and small form factor makes it an excellent choice for designers looking to enhance the durability and longevity of their electronic products. By integrating this TVS diode into your design, you can ensure that your products are safeguarded against the unpredictable nature of electrostatic discharge and related transient voltage events.
