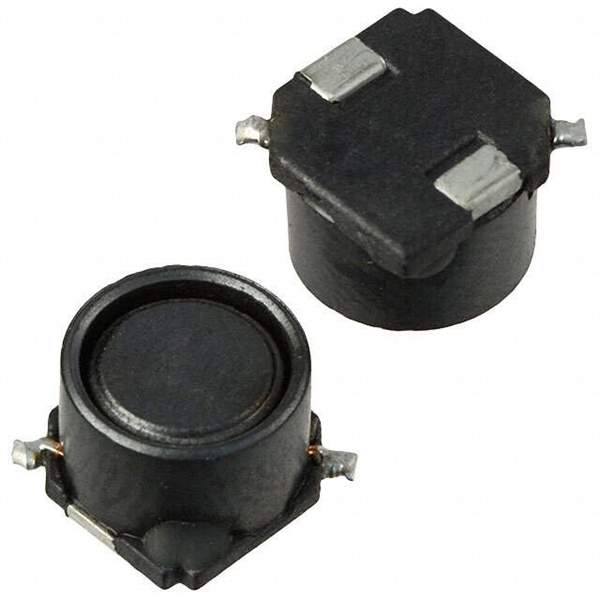

SRR7045-100M Real Image
Same model may have multiple batches, images only for reference.

SRR7045-100M

Part No SRR7045-100M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 2A 42 MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 2 A 42mOhm Max Nonstandard
Datasheet
SRR7045-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR7045
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 2 A
Current - Saturation (Isat) 1.7A
Shielding Shielded
DC Resistance (DCR) 42mOhm Max
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 25MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SRR7045
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRR7045-100MDKR,-SRR7045-100MTR,-SRR7045-100M,SRR7045-100M-ND,SRR7045100M,SRR7045-100MCT,-SRR7045-100M-ND,-SRR7045-100MCT,SRR7045-100MTR
Standard Package 1,000
Win Source Part Number 971055-SRR7045-100M
Ultra Librarian 3D Model Ultra Librarian SRR7045-100M CAD Model

Description

The Bourns Inc. SRR7045 series inductor is a wirewound, drum core type inductor with a ferrite core material.

  • Packaging: Shielded
  • Standard Package: 1,000
  • Inductance: 10 μH
  • Tolerance: ±20%
  • DC Resistance: 42 mOhm max
  • Current Rating: 2 A
  • Height: 0.189" (4.80mm) when seated
  • Frequency Self-Resonant: 25MHz
  • Q @ Freq: 30 @ 2.52MHz
  • Temperature Range: -40°C ~ 125°C
  • Package/Case: Nonstandard
  • Mounting: SMD (SMT) technology
