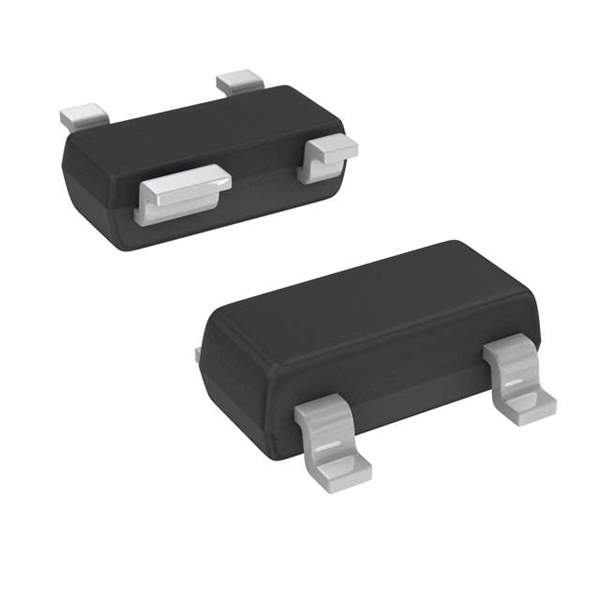

CD143A-SR05 Real Image
Same model may have multiple batches, images only for reference.

CD143A-SR05

Part No CD143A-SR05
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 20VC SOT143
Datasheet
CD143A-SR05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 20V
Peak Pulse Current(Ippm) 30A (8/20μs)
Power Dissipation - Pd 500W
Power Line Protection Yes
Applications Ethernet
Capacitance @ Frequency 10pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-143
Win Source Part Number 012800-CD143A-SR05
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Communications & Networking, Computers & Computer Peripherals, Portable Devices, Imaging, Video & Vision, Industrial
Family Name CD143A-SR05
Introduction Date October 06, 2005
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian CD143A-SR05 CAD Model

Description

Features and Benefits:

  • Surge protection capability
  • Compact footprint
  • Ease of integration into existing designs

Applications and Projects:

  • Lightning protection systems
  • Data communication lines
  • Home automation systems

The CD143A-SR05 is essential for safeguarding equipment from voltage spikes, offering superior protection for a range of electronics applications.
