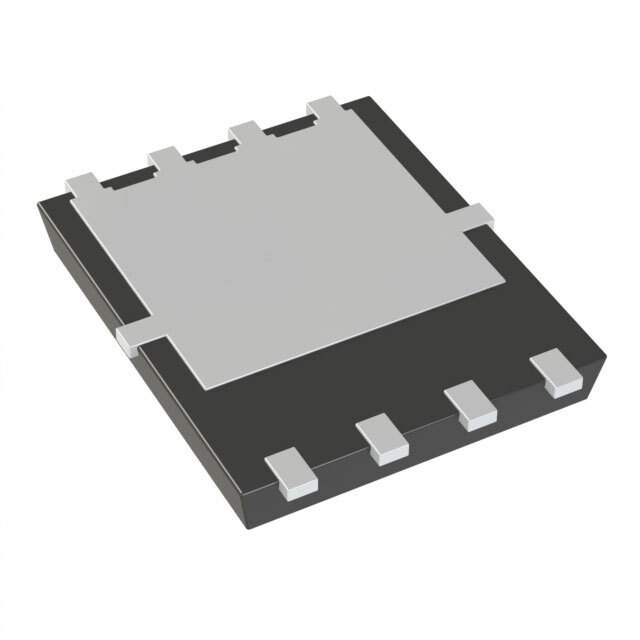

AON6354 Real Image AON6354 real image22166 AON6354 real image22167
AON6354 Real Image AON6354 real image22166 AON6354 real image22167
Same model may have multiple batches, images only for reference.

AON6354

Part No AON6354
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog FETs - Single
Description MOSFET N-CHANNEL 30V 83A 8DFN / 30V N-Channel MOSFET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) at 25°C 83A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Maximum) at Id, Vgs 3.3mOhm at 20A, 10V
Vgs(th) (Maximum) at Id 2.2V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 35nC at 10V
Maximum Vgs ±20V
Input Capacitance (Ciss) (Maximum) at Vds 1330pF at 15V
Power Dissipation (Maximum) 36W (Tc)
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Supplier Device Package 8-DFN-EP (5x6)
Manufacturer Package 8-PowerSMD, Flat Leads
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802114-AON6354
Ultra Librarian 3D Model Ultra Librarian AON6354 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AON6354 is a MOSFET transistor with the following characteristics:

  • Win Source Part Number: 802114-AON6354
  • Manufacturer Homepage: www.aosmd.com
  • Package: 8-DFN-EP (5x6)
  • Temperature Range: -55°C ~ 150°C
  • Rds On (Maximum) @ Id, Vgs: 3.3mOhm @ 20A, 10V
  • Gate Charge (Qg) (Maximum) @ Vgs: 35nC @ 10V
